Armourdeck

Permanent Formwork - choose Complete

Armourdeck Steel Formwork provides a fast, efficient method of creating suspended concrete slabs. The composite action of steel decking also increases efficiency by forming a higher performance composite slab.

It offers excellent spanning capabilities, high composite strength and minimal deflection. It is ideal for both concrete and steel frame construction. This is roll-formed from hot-dip zinc coated, hi tensile steel strip in a range of base metal thicknesses (BMT) conforming to AS1397.

Please refer to our Armourdeck Brochure for detailed technical information including Deflection Limits and general product data.

If you are planning your project or are ready to order

Armourdeck

We supply Armourdeck to projects all over the Greater Sydney region. Over the past 15 years we have proudly supplied large volumes for projects ranging from small residential to large commercial.

Work with us.

Armourdeck Profiles

Armourdeck 600

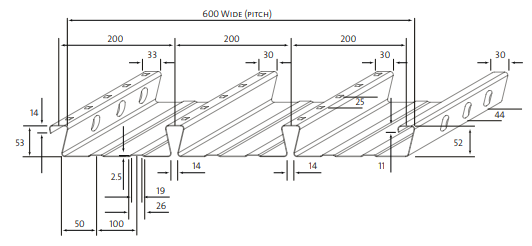

The traditional“re-entrant” design of Armourdeck™ 600 is based on a high-strength,three-pan profile with a width of 600mm and overlapping ribs for quick installation. The steel deck acts as permanent formwork and requires minimal propping.

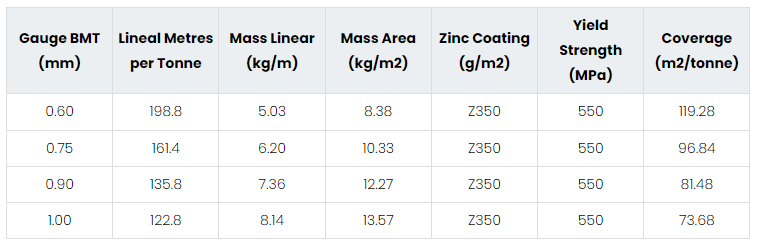

Specifications

Features

  • 600mm width for quick cover

  • High composite strength

  • Long spanning capability

  • Ribs create safe working platform

  • Interlocking horizontal laps

  • Slip-resistant embossments

Armourdeck 300

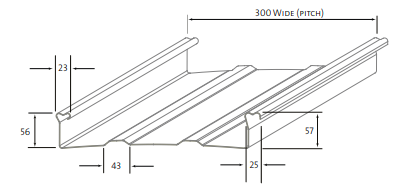

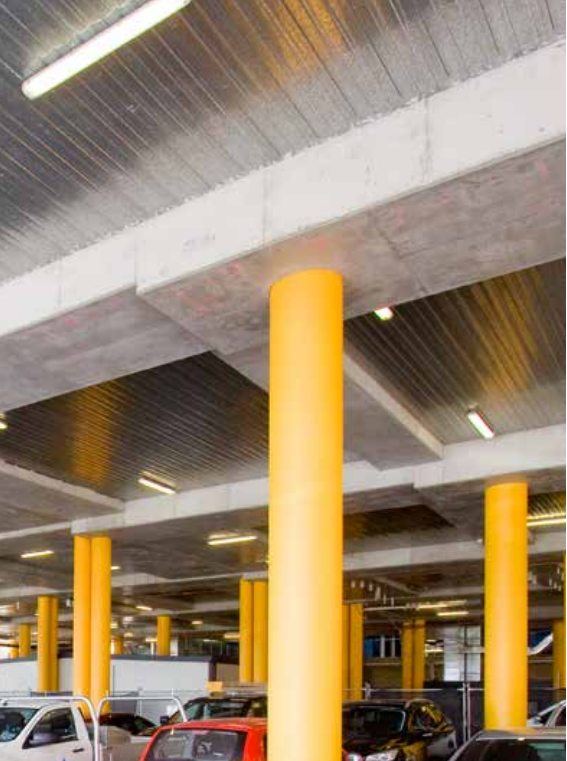

The narrower sheet width of Armourdeck™ 300 makes it easier to cut, carry and install on site. The flat soffit is visually more appealing where the decking is left exposed, such as in car parks, while the absence of voids improves slab performance.

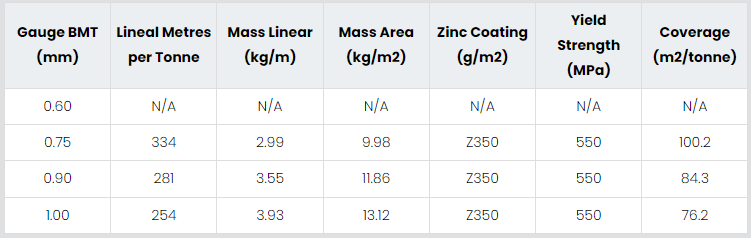

Specifications

Features

  • 300mm width for ease of handling

  • Light and easy to carry

  • Composite action

  • Interlocking laps

  • Flat soffit for attractive ceiling finish

  • No voids in slab


Get in touch.

If you have any queries relating to this product range, please message us today and we will be in touch.
