Grey & Coloured Masonry Blocks
choose Complete
Our Grey & Coloured Masonry Block Range
Our range has been designed as all-purpose units to meet a range of masonry site requirements. These masonry units are not only lightweight and load-bearing but also achieve high fire rating and sound insulation.
We have been proudly partnered with Austral Masonry for over a decade.
Through our strong partnering, Complete Lintels Building Supplies is fortunate to supply 100% Australian made masonry products, delivered on time to your site and at competitive rates.
Choose Complete

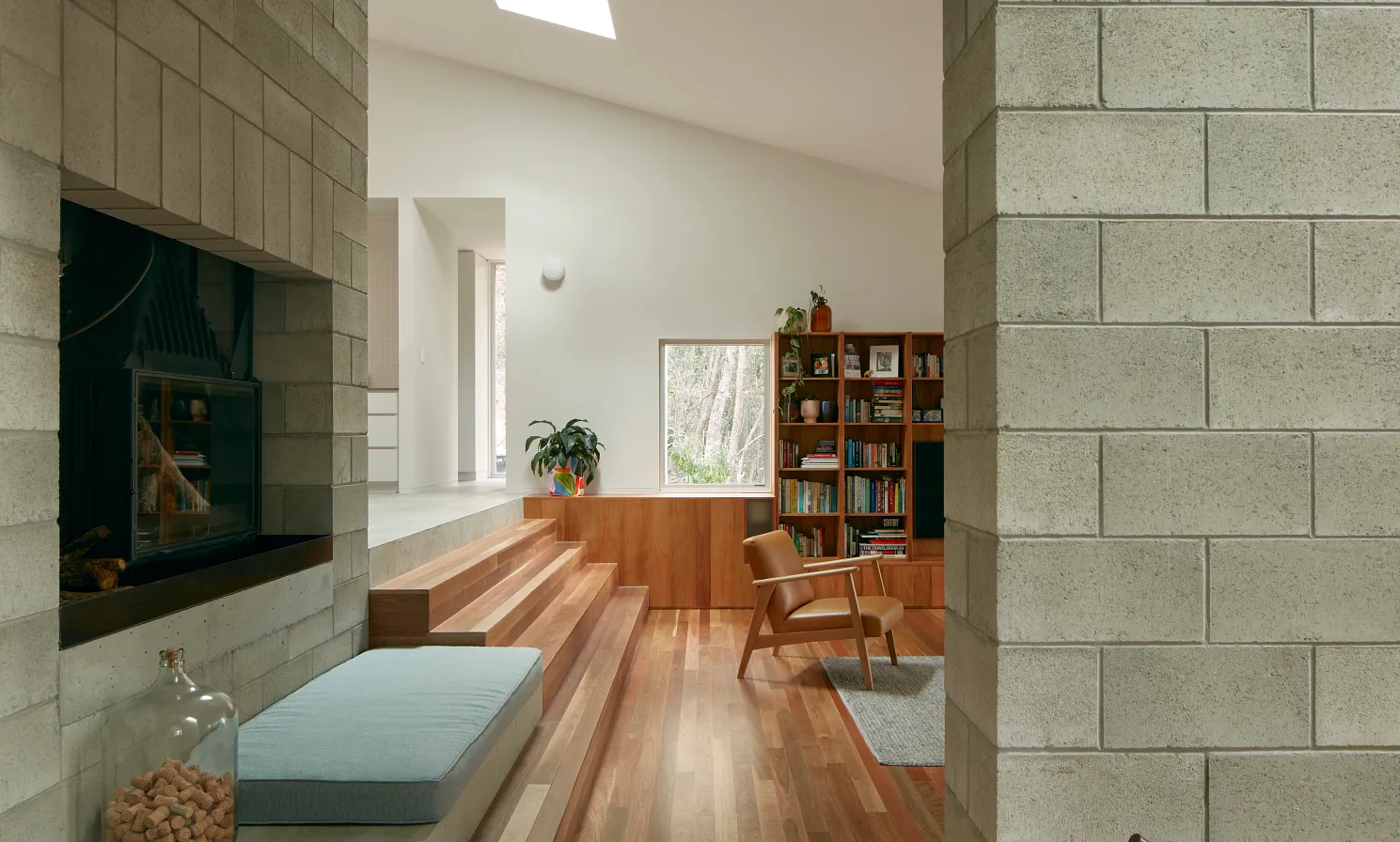

Grey Block Range
Want to know more about this product?

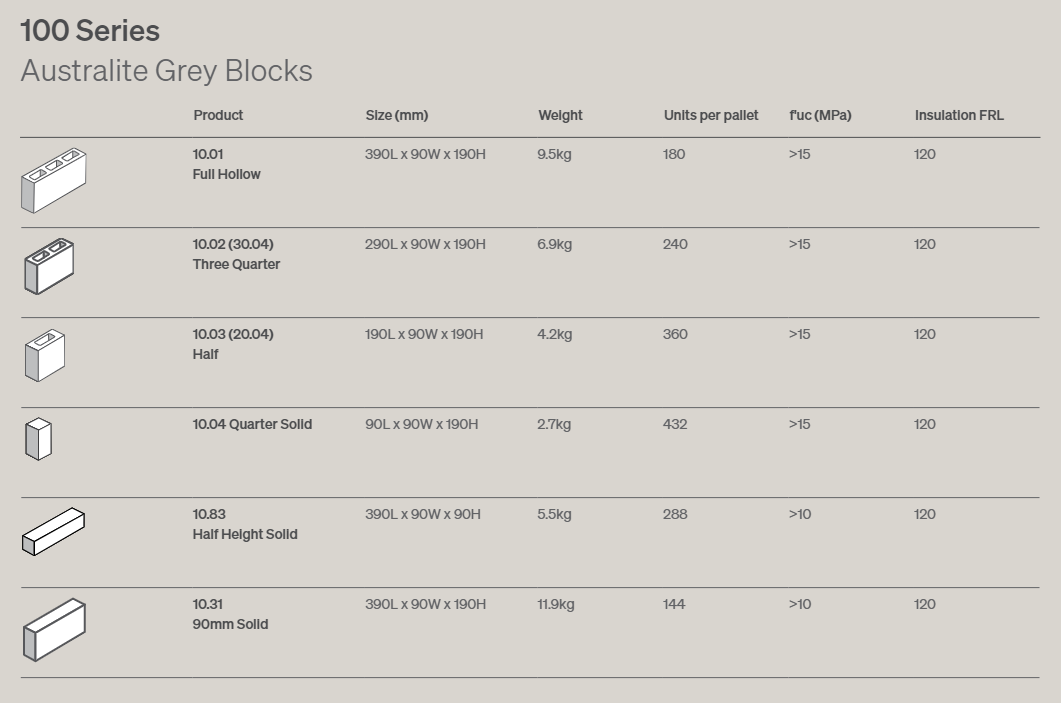

100 Series
120 Series

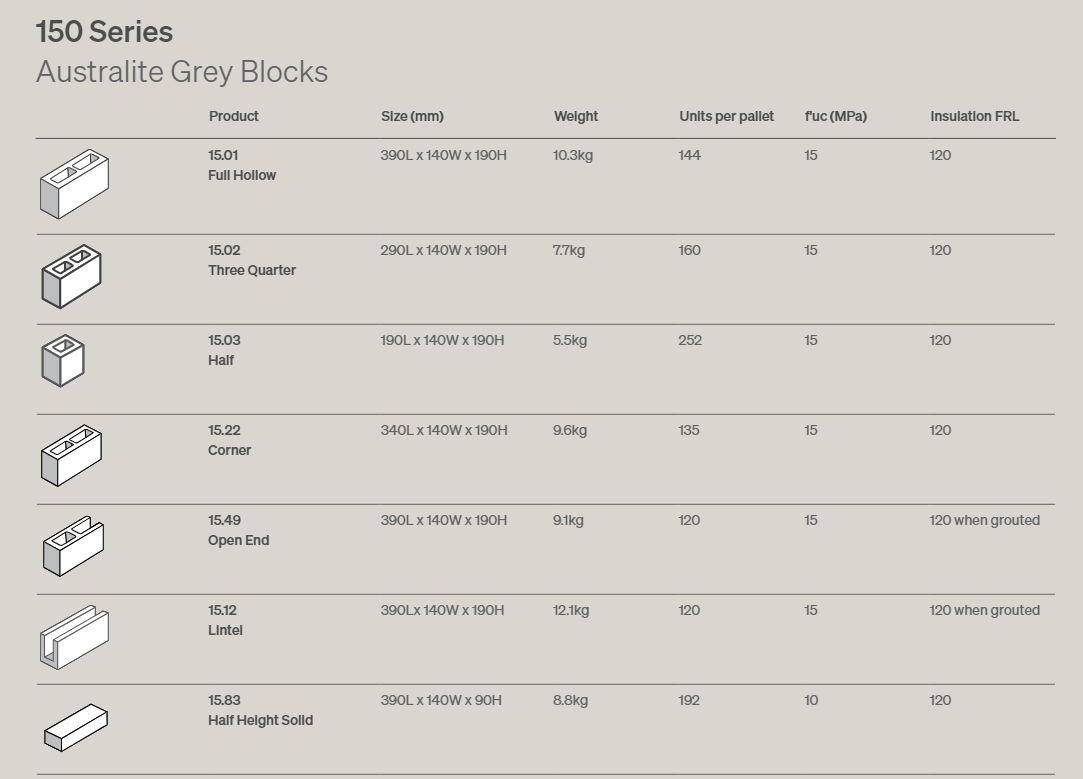

150 Series

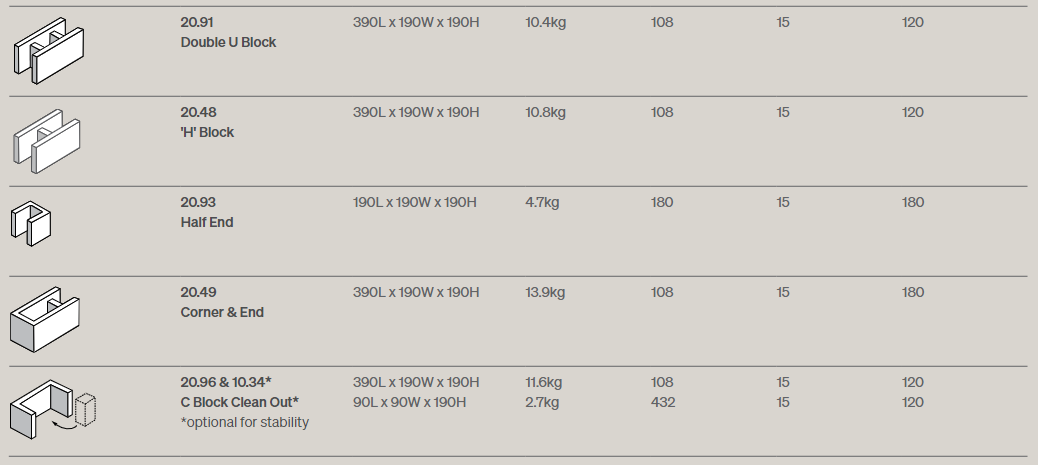

200 Series

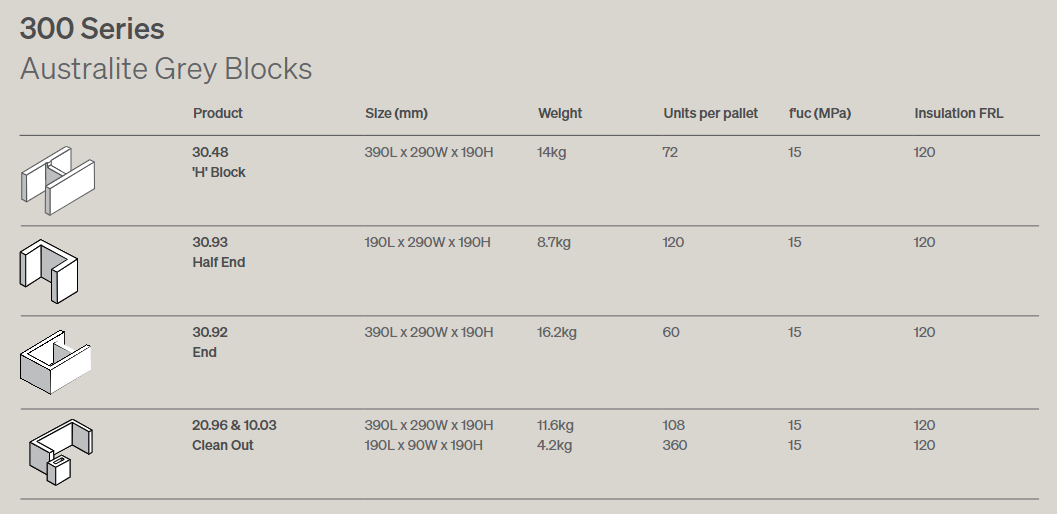

300 Series

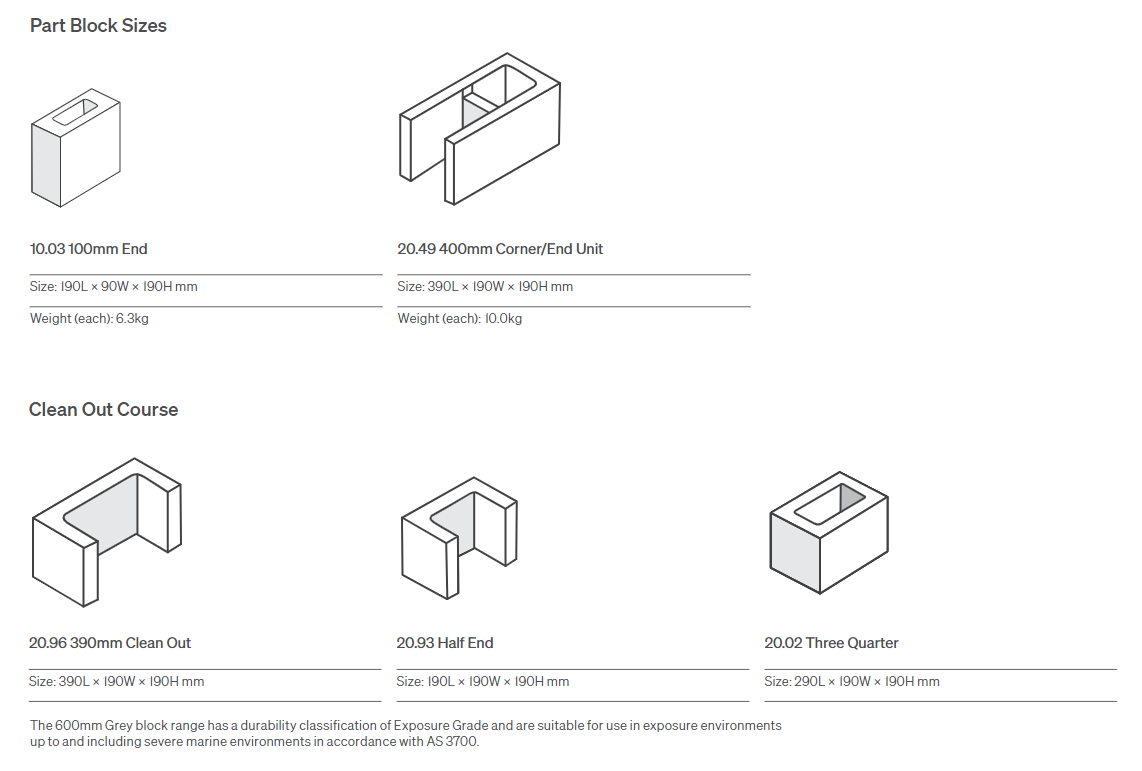

600 Series

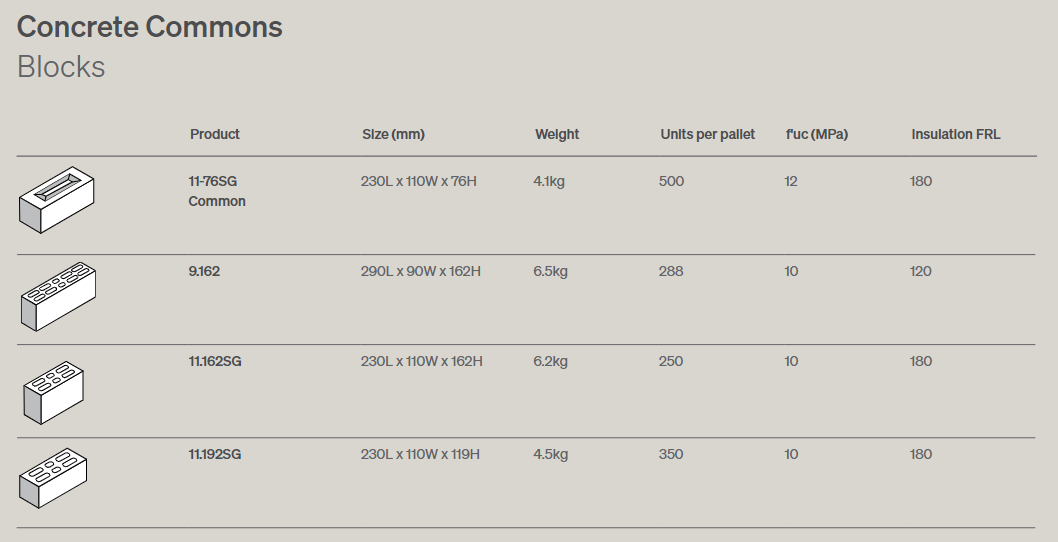

Concrete Commons

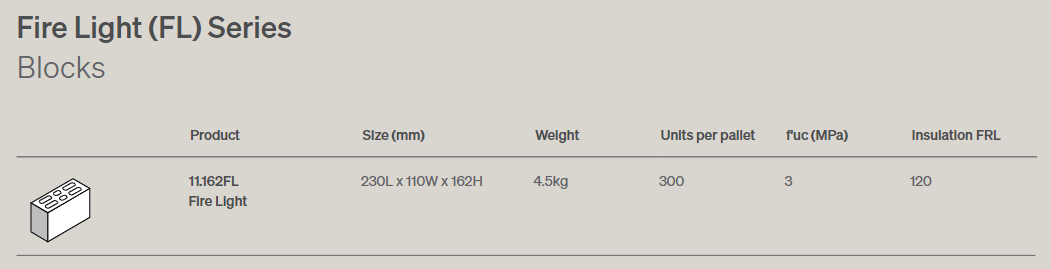

Fire Light (FL) Series
Core Filling Quantities
Because of temperature variations and the shrinkage in a concrete masonry wall after construction, it is necessary to provide control joints in blockwork at a max spacing of 6m and at points of potential cracking, e.g. beside openings and at large steps in wall or footing.
• Joint width is 10mm for panels up to 6000mm long.
• Joint sealants should be applied towards the end of construction to minimise the effect of panel movement
Control Joints
The correct concrete specification (mix design)
is critical to achieving the structural design of a reinforced wall. The concrete used to fill the cores of blockwork walls should be specified as follow:
• Concrete to comply with AS3700 Clause 10.7.
• Characteristic Compressive Strength minimum 20MPa.
• Where concrete is to provide protection to reinforcement,
cement content shall be not less than 300kg/m³.
• Round aggregate (if any) not more than 10mm.
• Clean sand (1.2m³)
• A pouring consistency which ensures that the cores are completely filled and the reinforcement completely surrounded without segregation of the constituents.
Concrete for Core Filling
Block Type | 1m3 Concrete |
---|---|
15.421 | 210 blocks |
15.48 | 210 blocks |
20.421 | 132 blocks |
20.48 | 110 blocks |
30.48 | 70 blocks |

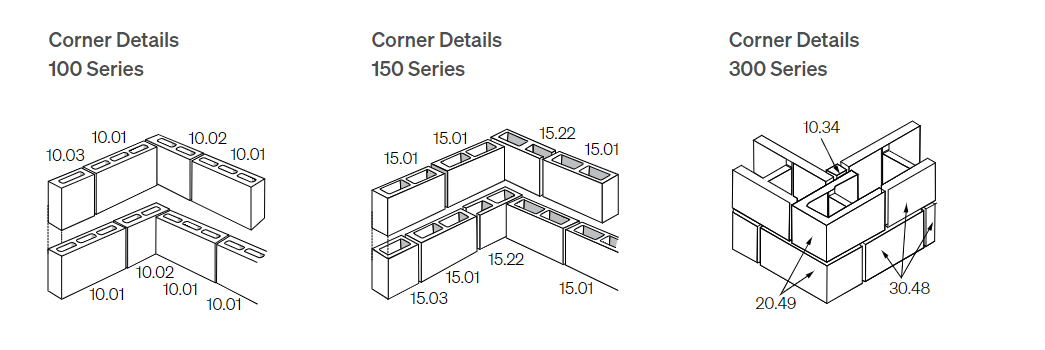

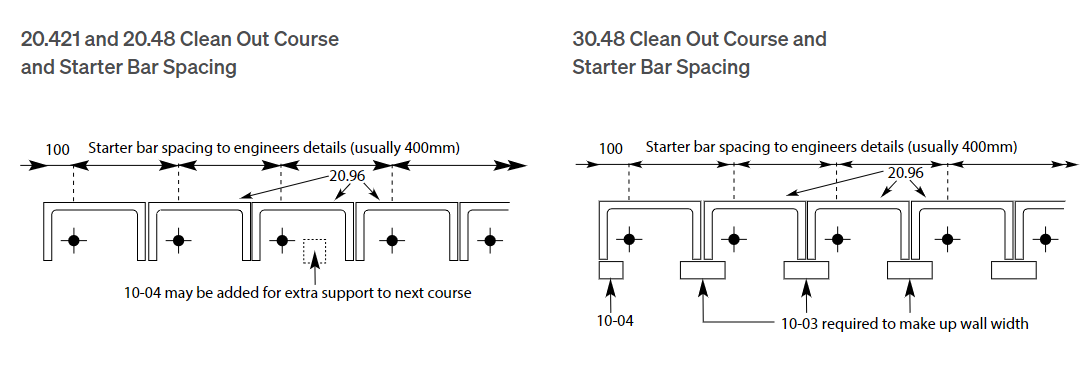

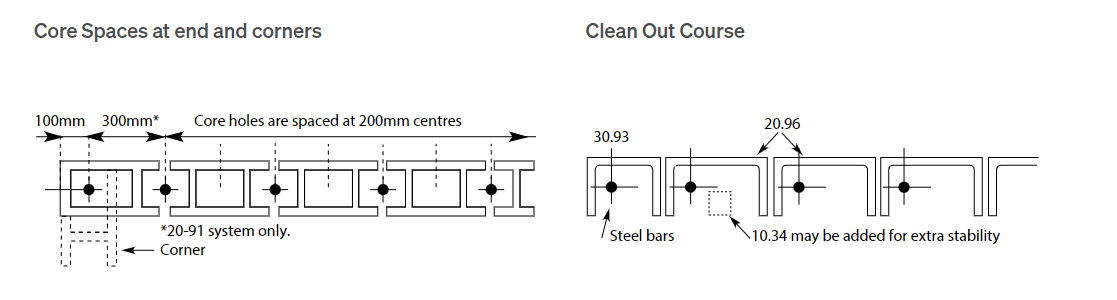

Block Detailing
Adbri Masonry Coloured Block Range
Premium quality coloured concrete building blocks from Adbri Masonry
Coloured Breeze Block
Designer Masonry Honed

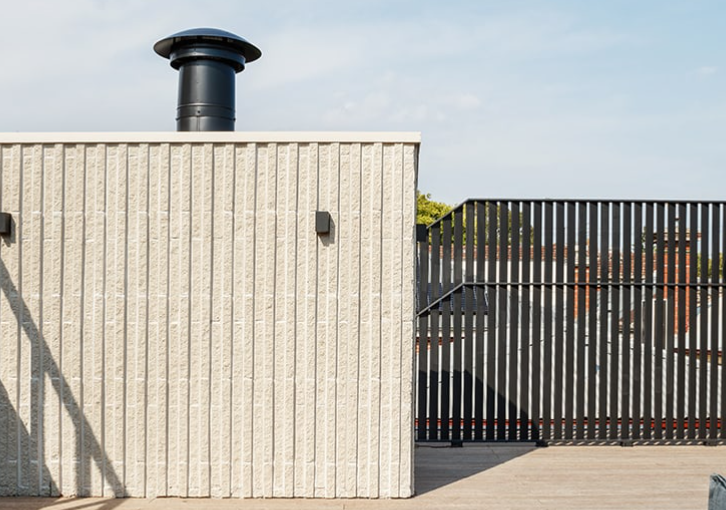

Sandhurst Stone
Designer Masonry Shotblast

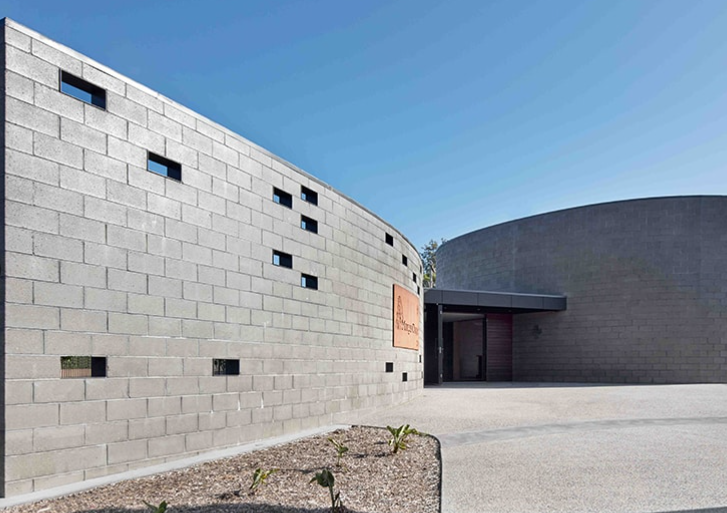

Smooth Stone
Architec Coloured Block Range
When considering building products to use on your project its important to understand all
the pro’s and con’s. You know you’re making the right choice when you consider the host
of benefits Austral Masonry’s Architec range offers
Architec Honed

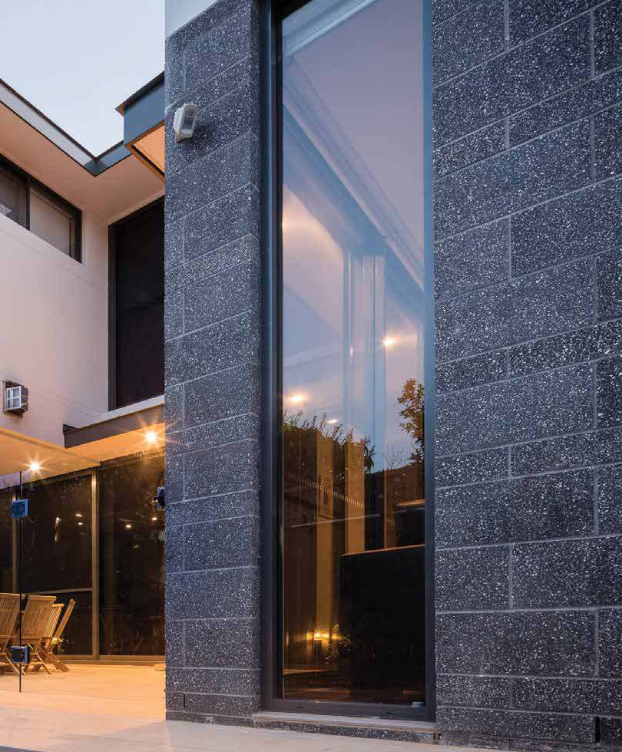

Architec Polished

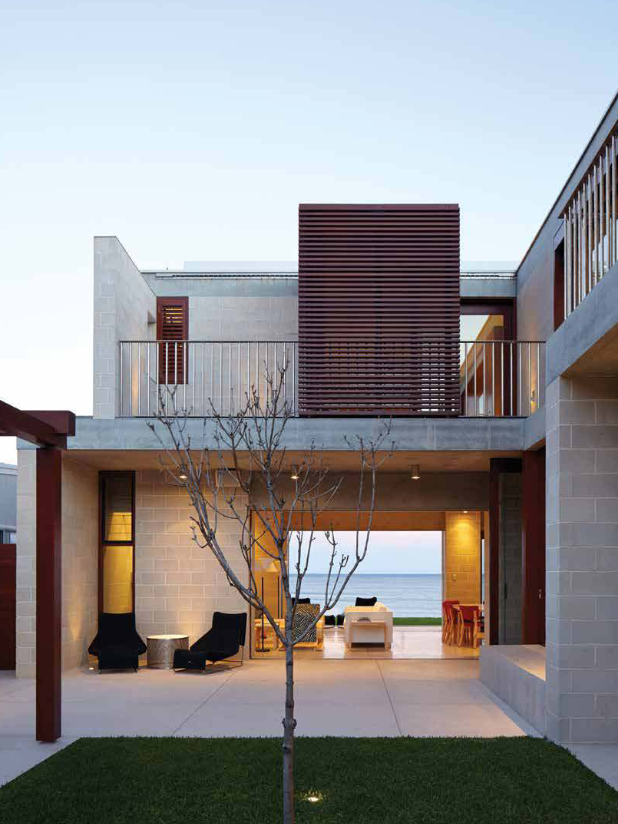

Architec Smooth

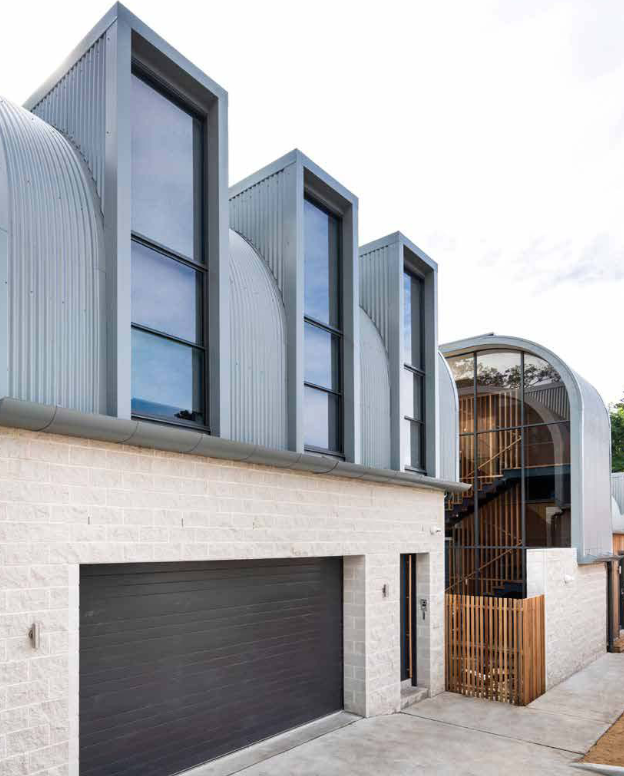

Architec Split Face

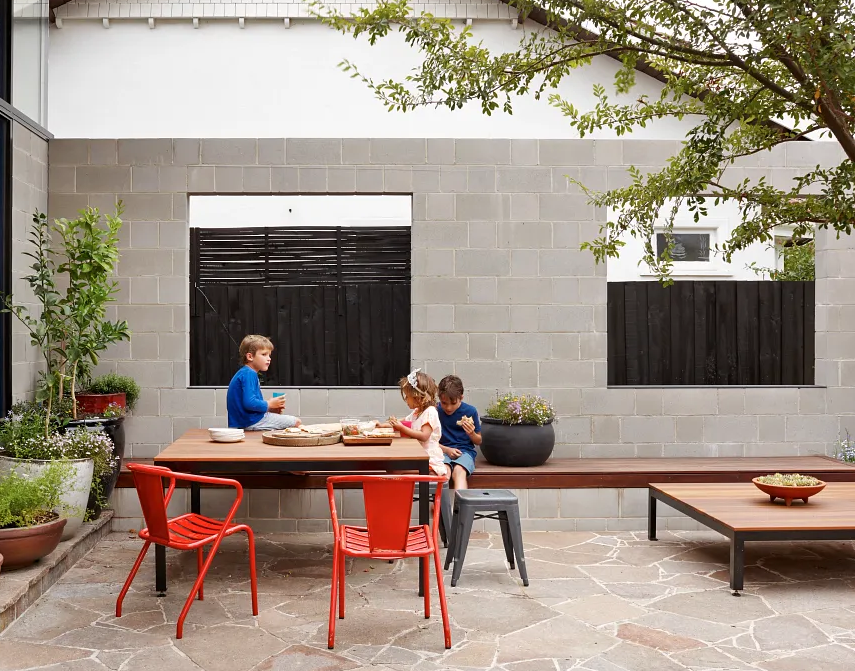

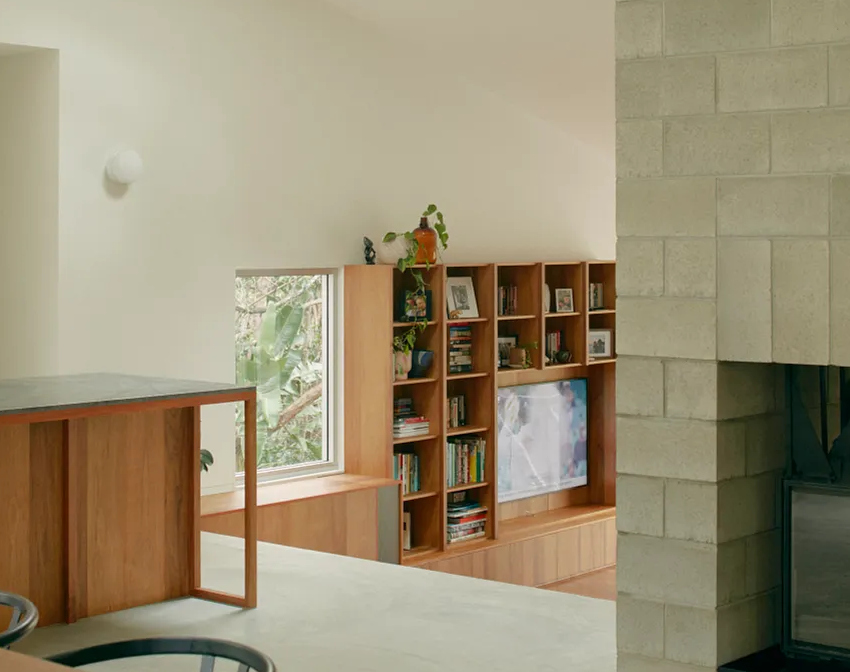

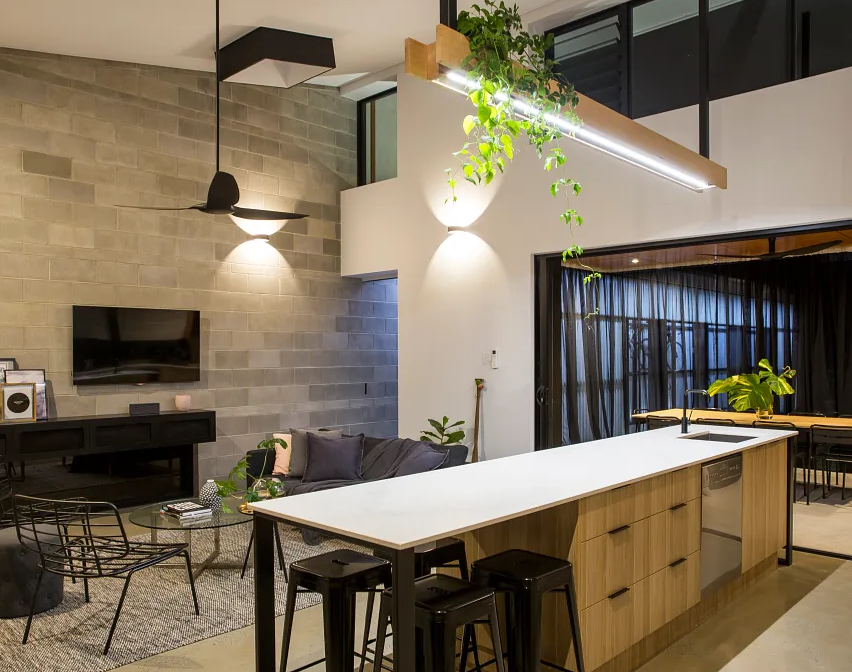

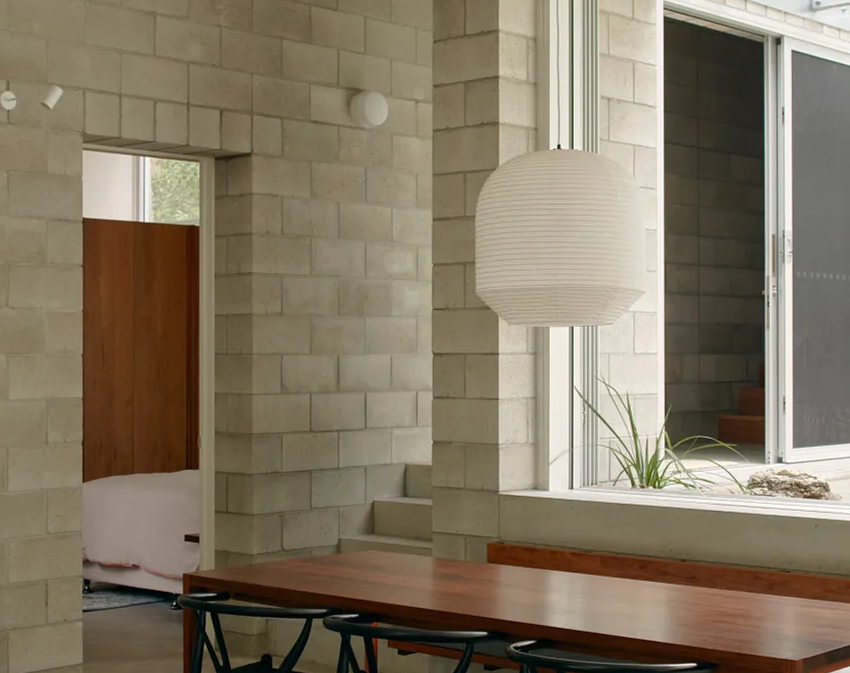

Design Inspiration
Take inspiration from the gallery below, the possibilities are endless with our grey block range.
Get in touch.
If you have any queries relating to this product range, please message us today and we will be in touch.
